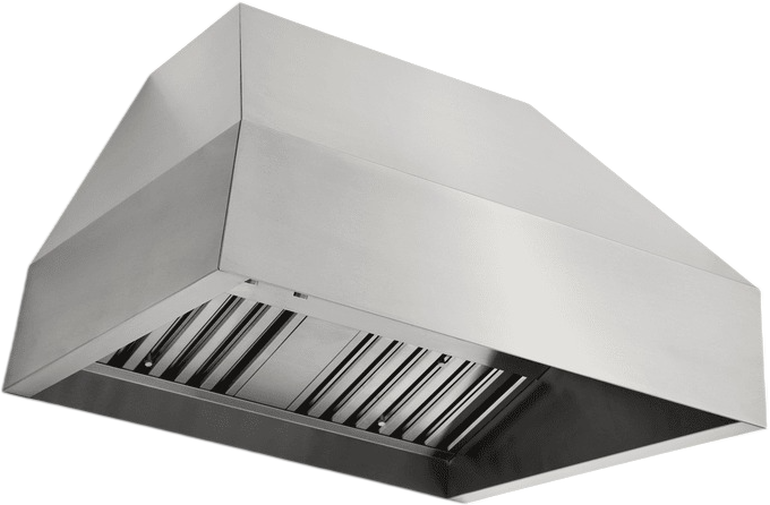

Trade-Wind® P7200 Series 42" Stainless Steel Outdoor Range Hood

Trade-Wind

Model #:

P7242

Trade-Wind® P7200 Series 42" Stainless Steel Outdoor Range Hood-0
Trade-Wind® P7200 Series 42" Stainless Steel Outdoor Range Hood-1
Trade-Wind® P7200 Series 42" Stainless Steel Outdoor Range Hood-2
Trade-Wind® P7200 Series 42" Stainless Steel Outdoor Range Hood-3
Trade-Wind® P7200 Series 42" Stainless Steel Outdoor Range Hood-4

At a Glance

Product Dimensions 24"h x 42"w x 32"d

Trade-Wind® P7200 Series 42-inch stainless steel pyramid style outdoor wall mounted range hood offers powerful ventilation for outdoor cooking environments. Designed to remove smoke, heat, and odors efficiently, it features durable weather-resistant construction and sleek styling that enhances luxury outdoor kitchen spaces beautifully.Read More

$2,699.00

Get to know this product.

Product Overview

Product Overview

Lighting

Recessed controls and LED lights

Buttons and light glare hidden from the front

Two LED lights brighten cooking area (three on 48”,60”, and four on 72” model)

Enduring Quality
Quiet Operation

Commercial grade stainless steel (#304 grade) and galvanized steel construction

Rubber-mounted motor & large, squirrel-cage blowers reduce sound and vibration

CFM and sound tested by Energy Systems Laboratory at Texas A&M University

3-speed motor control reduces blower and air movement sound

Additional Features

Double bank of baffle filters allows for the largest active capture area in

outdoor hoods. Generously proportioned 32” depth of hood bottom, 15′′ depth at top, 24′′ high, provides an exceptional capture area.

Ease of Use

Cool touch knarled knobs for easy control

Installation

All 24” bodied hoods easily convert from vertical discharge to horizontal at job site

Useful Documents
Specification Sheet
Installation Instructions
Warranty
Specifications

General Specs

ColorStainless Steel
Color/Finish NameStainless Steel
Range Hood TypeWall Mounted
Maximum CFM1200
Grease Filter TypeBaffle
Duct Size (in.)10
Fan Speed Options3
Range Hood FeaturesLight
Outdoor ApprovedYes
Width (in.)42
Depth (in.)32
Height (in.)24
Product Weight (lbs.)175
CollectionP7200
SeriesP7200
ADA CompliantYes
Voltage120
Frequency60
Amp1.0

Specifications

Models36”, 42”, 48″, 60″ & 72″
CFMTwo or four internal sealed motors deliver 1200 CFM or 2300 CFM Optional in-line blowers deliver 1266 CFM
MaterialHeavy gauge commercial stainless steel (#304 grade, 22-gauge) Dimmable 50 watt halogen lights
FiltersFour 12” by 14” baffle filters improve performance (six filters on the larger model) Design of the stainless steel commercial baffle filters adds a professional appearance and improves the performance
InstallationGenerously proportioned 32” depth of hood bottom, 15″ depth at top, 24″ high, provides an exceptional capture area
